Welcome to the official website of Jiangyin Feisheng Machinery Co., Ltd!

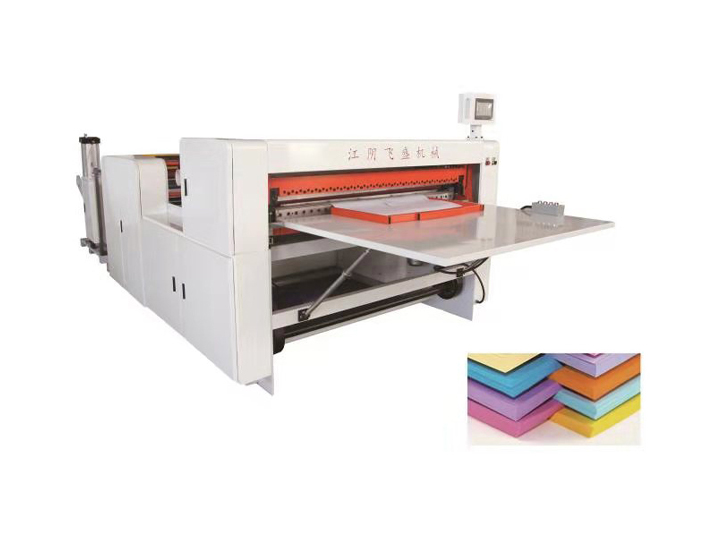

FS microcomputer controlled high-precision cross cutting machine (with longitudinal slitting)

This cross cutting machine is suitable for cutting different types of large roll packaging materials such as paper, PVC, PET film, paper plastic composite, cloth, leather, etc.


Practical videos
FS microcomputer controlled high-precision cross cutting machine (with longitudinal slitting)
-----------------------------------------------------------------------------------------------------------------------

FS microcomputer controlled high-precision cross cutting machine (with longitudinal slitting)
-----------------------------------------------------------------------------------------------------------------------
scope of application
This cross cutting machine is suitable for cutting different types of large roll packaging materials such as paper, PVC, PET film, paper plastic composite, cloth, leather, etc.
Performance characteristics
This cross cutting machine uses a servo motor (or stepper motor) to control fixed length cutting. The transmission system adopts centralized control such as pneumatic and photoelectric sensors. This machine integrates light, electricity, and gas, with simple operation, high cutting accuracy, mechanical stability, and low noise. (Pneumatic feeding optional) Motor variable frequency speed regulation, automatic counting, alarm shutdown, magnetic powder tension control. It can be vertically divided into multiple sections, and the waste edges are automatically cleaned by a fan.
Technical parameter
Model FS-800D FS-1100D FS-1400D FS-1600D
Raw material diameter(≤) ¢1400mm ¢1400mm ¢1400mm ¢1400mm
Cutting width(≤) 800mm 1100mm 1400mm 1600mm
Vertical cutting width(≥) 50mm 50mm 50mm 50mm
Cutting length 20-1200mm 20-1200mm 20-1200mm 20-1200mm
Fixed length accuracy ±0.2mm ±0.2mm ±0.2mm ±0.2mm
Speed 10-150times/min 10-150times/min 10-150times/min 10-150times/min
Whole machine power 7.5KW 7.5KW 10KW 10KW
Weight 1200kg 1700kg 2100kg 2500kg
External dimensions 5000×1600×1200(mm) 5000×1900×1200(mm) 5500×2200×1200(mm) 5500×2500×1200(mm)
Practical venue
